Resin manhole cover Manufacturer in China | Resin composite grating

Place of Origin:Zhejiang, China

Model Number:EN124 A15-C/O 450x450mm

Material:Resin fiberglass composite

Chrarcteristics:Fiberglass Reinforced Resin

Molding Method:High-temp Membrane Pressure

Working Temperature:-40℃- 200℃

Weight:Half Weight Than Cast Iron

Recycle Value:Zero Recovery Value

Severice Life:More than 30 years

Available Load Rating:A15/B125/C250/D400

Available Colors:Black, Grey, Green, Blue, Yellow, Red, etc.

  • Description

Description: Resin composite manhole cover & Grating
Color: Black, green,grey, yellow,black,red, etc
 Shape: Round, square,rectangular, etc

Bulk molding compound (BMC) or bulk molding composite is a ready to mold, glass-fiber reinforced thermoset polyester material primarily used in injection moulding and compression moulding. The material is provided in bulk or logs.

BMC is manufactured by mixing strands (>1”) of chopped glass fibers in a mixer with a thermoset resin (commonly polyester resin, vinyl ester or epoxy resin). The glass fibers in BMC result in better strength properties than standard thermoplastic products. Typical applications include demanding electrical applications, corrosion resistant needs, appliance, automotive, and transit.

Resin manhole cover

Resin manhole cover

Hot sale  square composite resin manhole cover

Product performance and characteristics:

1,Excellent performance
Similar hard property as cast iron, while have a overwhelming advantage on stretch recovery.
No theft value.
Anti rust,corrosion,water,dust, well sealed
Non-electricity conduction and non-heat conduction.
2,High load capacity
 Load capacity are A15, B125,C250,D400
3,Light weight
The weight especially SMC manhole cover is lighter than cast iron and concrete.
4,Durable service life
More than 30 years service life without crack and color fading.
5,High Precision
Our Manhole Cover is shaped under high-temperature mould with pressure.
6,No Noise
Composite Manhole Cover has overcome the problem of making noise.
7,Flexible Design

China manhole cover

How to Produce the fiberglass manhole cover ?


 MATERIAL

 Our Composite Manhole Cover is made of BMC (bulk molding compounds), Fiberglass, Steel Bar.

BMC is the abbreviation of ”bulk molding compound”. Its principal material is group of presoak material fully mixed with GF (chopped glass fiber), UP (unsaturated resin), MD (packing), and various of additives. BMC materials were first applied in the former west Germany and the UK in 1960s. The BMC is increasingly welcomed by the masses of users for its excellentelectrical corrosion resistance and can be easily adapted to a variety of molding process, which meets the users requirement on the properties of various products.

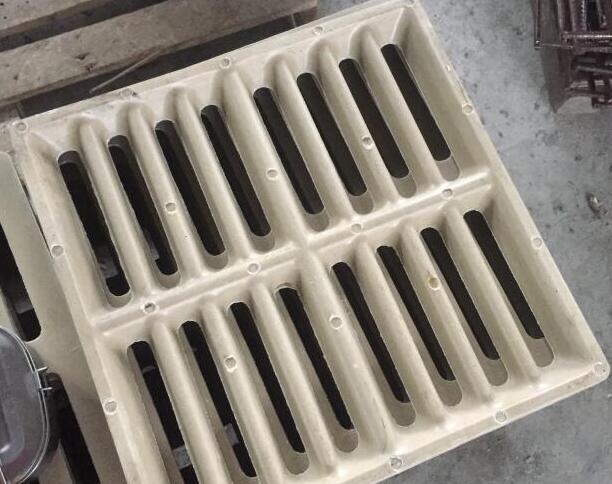

Resin composite grating :

resin grating

                                     resin grating                                          resin composite grating

PERFORMANCE FEATURE DESCRIPTION
Good Anti-theft Property This product is pressed with the polymer composite materials under the high-temperature mould, therefore Manhole cover is no recycle value for the thieves.
Easy Installation and Beautiful Appearance The weight of Manhole Cover is only a third of cast iron in same specification, It is convienience to installation and checking.Also we can produce Manhole Cover with different specification and color. It is beautify and you can easy to manage too.
High Precision Our Manhole Cover is shaped under high-temperature mould with pressure, and the joint clearance of the cover and frame is small.
No Noise Composite Manhole Cover is overcome the problem of cast iron Manhole Cover and Concret Manhole Cover, like displacement, warp,and making noise.
Flexible Desin We can costumized the words, patterns, color and LOGO for you. you will have your unique Manhole Cover in your country.
